Description:

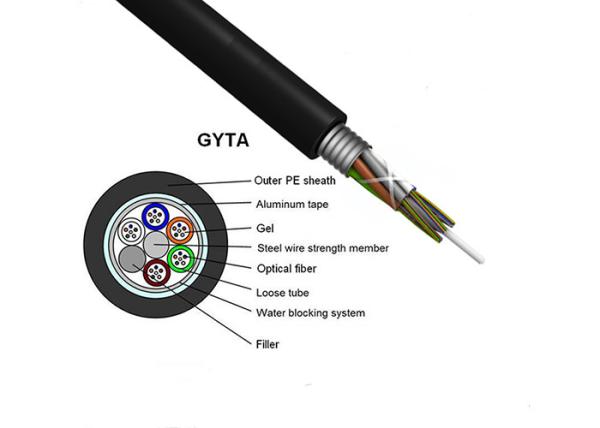

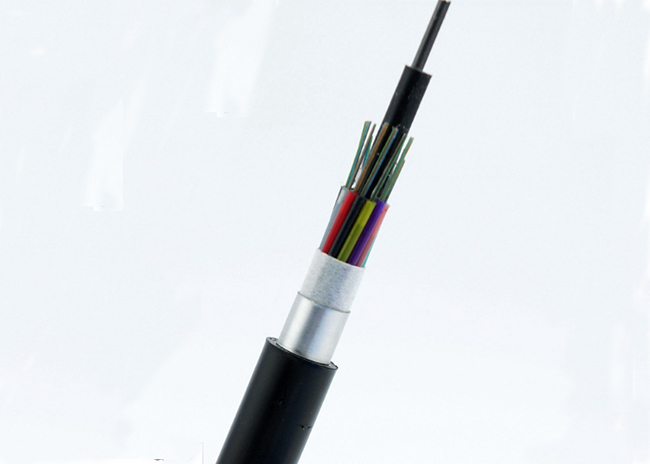

GYTA fiber cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
Features
1. Good mechanical and temperature performance.
2. Heigh strength loose tube that is hydrolysis resistand
3. Specially tube filling compound ensure a critical protection of
fiber
4. Specially designed compact structure is good at preventing loose
tubes from shrinking
5. PE sheath protects cable from ultraviolet radiation
6. Steel wire used as the central strength member
7.100% cable filling core filling
8. Loose tubes filling compound
9. APL moisture barrier
Cable Type | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength Long/ Short Term (N) | Crush Resistance Long/ Short Term (N/100mm) | Bending Radius Static/ Dynamic (mm) |
GYTA-2~6 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
GYTA-8~12 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
GYTA-14~18 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
GYTA-20~24 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
GYTA-26~30 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
GYTA-32~36 | 10.2 | 104 | 1000/3000 | 300/1000 | 10D/20D |
GYTA-38~48 | 11.0 | 117 | 1000/3000 | 300/1000 | 10D/20D |
GYTA-50~60 | 11.0 | 117 | 1000/3000 | 300/1000 | 10D/20D |
![]() |
