    2-144C GYTA33 Underwater Outdoor Fiber Optic Cable With Steel Armored for Submarine

    Ask Lasest Price
    Brand Name : Furong
    Model Number : GYTA33
    Certification : SGS, ISO
    Price : NEGOTIABLE
    Supply Ability : 2000KM/DAY
    • Product Details
    • Company Profile

    2-144C GYTA33 Underwater Outdoor Fiber Optic Cable With Steel Armored for Submarine

    Description:

    GYTA33 is an underwater use fiber optic cable, it is steel wires armored to be suitable for installation in harsh environment, GYTA33 can also be direct buried underground, and this cable is available from 2cores to 144cores.

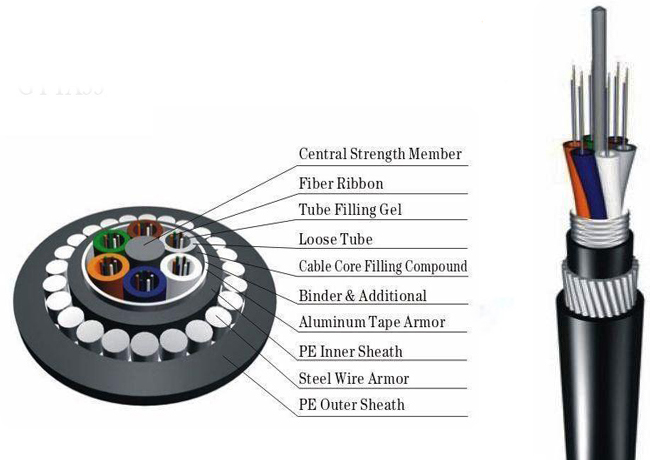

    GYTA33 is with loose tube technology which makes the fibers good secondary excess length and allows the fibers free movement in the tube. These features keep the fiber stress free while the cable is subjected for longitudinal stress.Optimum mechanical protection such as high tensile, crush and impact resistant performances are achieved by the steel wire armor and the double jacket structure


    Features

    --Low attenuation, low dispersion
    --Proper design, precise excess length control and cabling process provide cable with excellent mechanical performance and environmental performance.
    --Steel wire armor and double sheath make the cable more efficiently resist tensile, side pressure, moisture as well as the nibbling damage from animals.
    --LSZH flame-retardant material is applied in sheath in the model GYTZA33

    Specification


    fiber count


    Cable outside diameter(mm)

    Cable weight

    (kg/km)

    Min. bending radius (mm)

    D=cable diameter

    Max. tensile load
    (N)

    Max. crush load

    (N/100mm)

    staticdynamicShort-termLong-termShort-termLong-term
    2~3014.732412.5D25D10000400050003000
    32~3615.335812.5D25D10000400050003000
    38~6016.038412.5D25D10000400050003000
    62~7217.046012.5D25D10000400050003000
    74~9619.059312.5D25D10000400050003000
    98~12021.272212.5D25D10000400050003000
    122~14422.285212.5D25D10000400050003000
    Operating temperature-40~+60℃
