    2-12Core FRP Strength Member Loose Tube Outdoor Fiber Optic Cable GYFXTY

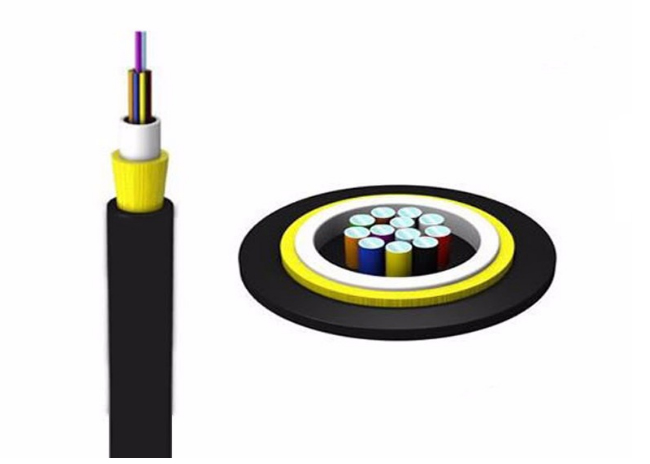

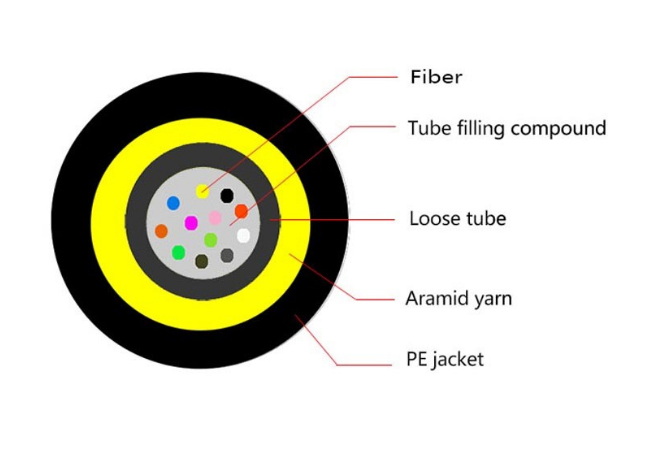

    GYFXTY is an outdoor communication optical cable of of the central tube jelly-filled structure with embedding steel-polyethylene laminated sheath, consisting of the central loose tube, two parallel FRP strength members, and sheath.


    Features:

    --Good mechanical and temperature performance.
    --High strength loose tube that is hydrolysis resistant.
    --Special tube filling compound ensure a critical protection of fiber.
    --Crush resistance and flexibility.
    --Two parallel steel wires ensure tensile strength.
    --Small diameter, light weight and friendly installation.

    Technical Parameters:
    Cable CountOut sheath
    Diameter
    WeightMinimum allowable Tensile Strength
    (N)
    minimum allowable Crush Load
    (N/100mm)
    Minimum Bending Radius
    (MM)
    Storage
    temperature
    (MM)(KG)short termlong termshort termlong termshort termlong term(°C)
    27.2451200500100030020D10D-40+60
    47.2451200500100030020D10D-40+60
    67.2451200500100030020D10D-40+60
    87.2451200500100030020D10D-40+60
    127.2451200500100030020D10D-40+60

    Optical Characteristics
    Fiber SortMultimodeG.651A1a:50/125Graded-index fiber
    A1b:62.5/125
    SinglemodeG.652(A,B,C,D)B1.1:Conventional fiber
    G.653B2: Zero dispersion shifted
    G.654B1.2 :Cut-off wavelength shifted
    G.655B4: Main technical data for positive
    dispersion shifted single-mode fiber
