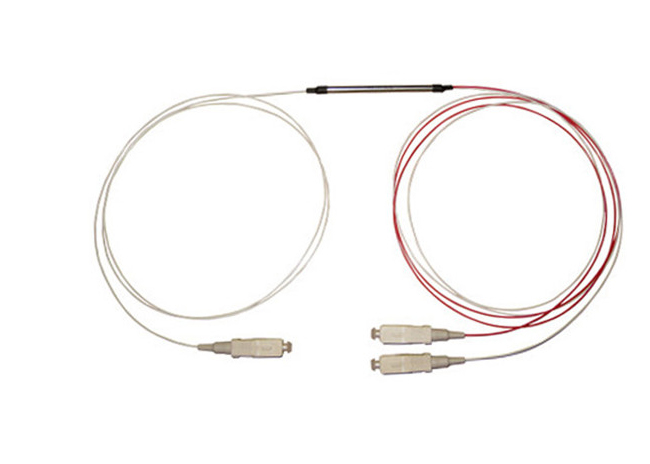

    1x2 Singlemode Fbt Fiber Optic Splitter Equal Ratio With Or Without Connectors

    Ask Lasest Price
    Brand Name : FURONG
    Model Number : SPLITTER1-2FBT-05
    Certification : ROHS, ISO
    Price : negotiable
    Supply Ability : 2000/day
    Delivery Time : 1-8days
    • Product Details
    • Company Profile

    1x2 Singlemode Fbt Fiber Optic Splitter Equal Ratio With Or Without Connectors

    Single mode Single Window FBT Fiber Couplers are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment. Our single mode optical couplers work at either 1310nm or 1490nm or 1550nm. Single mode FBT couplers are fabricated using single mode fibers. They have operation bandwidth of 40nm around its central wavelength. The excess loss is very low, no greater than 0.15dB for grade A product and no greater than 0.1dB for premium grade product. Also, customers can specify your required coupling ratios. FC/UPC or APC, SC/UPC or APC, LC/UPC or APC and ST/UPC or APC fiber optic connectors are available.

    Features

    Low Excess Loss

    Various Coupling Ratios

    Wide Pass Band

    High Stability and Reliability


    Applications

    FTTX (FTTP, FTTH, FTTN, FTTC)

    Passive Optical Networks (PON)

    Local Area Networks (LAN)

    CATV Systems

    Optical communication systems


    Specifications

    Single mode Single Window FBT Couplers
    Grade ParameterPA
    Operating wavelength (nm)1310 or 1550, others on request
    Operating bandwidth (nm)±20
    Typical excess loss (dB)0.070.10

    Insertion loss (dB)

    50/50≤3.4≤3.6
    40/60≤4.4/2.6≤4.7/2.8
    30/70≤5.7/1.9≤6.0/2.0
    20/80≤7.6/1.2≤8.0/1.3
    10/90≤11.0/0.65≤11.5/0.8
    5/95≤14.2/0.4≤14.8/0.5
    3/97≤16.7/0.3≤17.2/0.4
    2/98≤18.5/0.25≤19.0/0.35
    1/99≤21.5/0.2≤22.0/0.3
    PDL (dB)≤0.10≤0.15
    Directivity (dB)≥55
    Operating temperature (℃)-40 ~ +85
