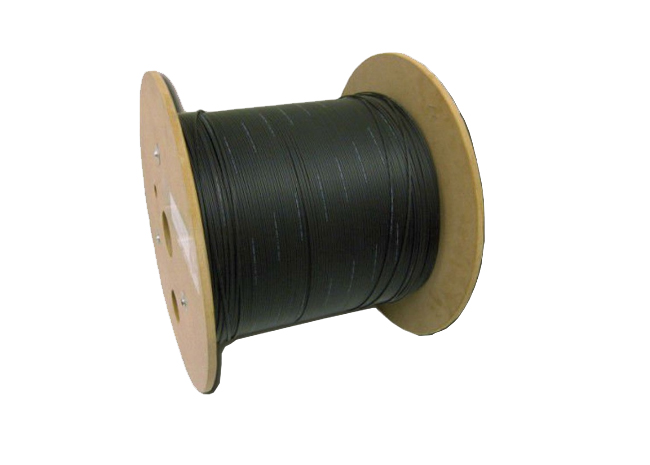

G657A1 One Core Fiber Single-mode Single-armored Metal Strength PE FTTH Duct Cable

FTTH duct cables are made for connecting user’s devices with outdoor feeder cable, especially suitable for duct installation. The optical fiber unit is located in the center. The two parallel FRP strength members improve the tensile strength. With the LSZH (LSZH, Low smoke, Zero halogen) material jacket, this cable has good flame retardant performance. Water blocking tape & AL-plastic tape provide good water proof ability. Flame-retardant, FRP Strength Member, Double-Jacket Armored Cable can be used in aerial and duct access cabling in FTTH

Feature

Simple structure, light weight and high practicability
Novel flute design, easily strip and splice, simplify the installation and maintenance
Soft and flexible, good bending performance
Water-proof tape prevent the ingression of water into the cable
AL-plastic tape makes the cable crush resistant and moisture proof
FRP strength member improves the tensile strength, LSZH flame-retardant inner and outer jacket has good flame retardant performance
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property

Parameters:

Fiber characteristics

Fiber style			Unit	SM G652D	SM G657A1	SM G657A2
condition			nm	1310/1550	1310/1550	1310/1550
attenuation			dB/km	≤0.36/0.23	≤3.5/0.21	≤3.5/0.21
Dispersion		1310nm	Ps/(nm*km)	≤18	≤18	≤18
Dispersion		1550nm	Ps/(nm*km)	≤22	≤22	≤22
Zero dispersion wavelength			nm	1312±10	1312±10	1300-1324
Zero dispersion slope			ps/(nm²×Km)	≤0.091	≤0.090	≤0.092
PMD Maximum Individual Fiber			[ps/√km]	≤0.2	≤0.2	≤0.2
PMD Design Link Value			ps/(nm²×Km)	≤0.08	≤0.08	≤0.08
Fiber cutoff wavelength λc			nm	≧1180,≤1330	≧1180,≤1330	≧1180,≤1330
Cable cutoff wavelength λcc			nm	≤1260	.....	.....
MFD	1310nm		um	9.2±0.4	9.0±0.4	9.8±0.4
MFD	1550nm		um	10.4±0.8	10.1±0.5	9.8±0.5
Step(mean of bidirectional measurement)			dB	≤0.05	≤0.05	≤0.05
Irregularities over fiber length and point discontinuity			dB	≤0.05	≤0.05	≤0.05
Difference backscatter coefficient			dB/km	≤0.03	≤0.03	≤0.03
Attenuation uniformity			dB/km	≤0.01	≤0.01	≤0.01
Cladding diameter			um	125.0±0.1	124.8±0.1	124.8±0.1
Cladding non-circularity			%	≤1.0	≤0.7	≤0.7
Coating diameter			um	242±7	242±7	242±7
Coating/chaffinch concentrically error			um	≤12.0	≤12.0	≤12.0
Coating non circularity			%	≤6.0	≤6.0	≤6.0
Core/cladding concentricity error			um	≤0.6	≤0.5	≤0.5
Curl(radius)			um	≥4	≥4	≥4
Fiber style			Unit	SM G652D	SM G657A1	SM G657A2
condition			nm	1310/1550	1310/1550	1310/1550
attenuation			dB/km	≤0.36/0.23	≤3.5/0.21	≤3.5/0.21
Dispersion		1310nm	Ps/(nm*km)	≤18	≤18	≤18
Dispersion		1550nm	Ps/(nm*km)	≤22	≤22	≤22
Zero dispersion wavelength			nm	1312±10	1312±10	1300-1324
Zero dispersion slope			ps/(nm²×Km)	≤0.091	≤0.090	≤0.092
PMD Maximum Individual Fiber			[ps/√km]	≤0.2	≤0.2	≤0.2
PMD Design Link Value			ps/(nm²×Km)	≤0.08	≤0.08	≤0.08
Fiber cutoff wavelength λc			nm	≧1180,≤1330	≧1180,≤1330	≧1180,≤1330
Cable cutoff wavelength λcc			nm	≤1260	.....	.....
MFD	1310nm		um	9.2±0.4	9.0±0.4	9.8±0.4
MFD	1550nm		um	10.4±0.8	10.1±0.5	9.8±0.5
Step(mean of bidirectional measurement)			dB	≤0.05	≤0.05	≤0.05
Irregularities over fiber length and point discontinuity			dB	≤0.05	≤0.05	≤0.05
Difference backscatter coefficient			dB/km	≤0.03	≤0.03	≤0.03
Attenuation uniformity			dB/km	≤0.01	≤0.01	≤0.01
Cladding diameter			um	125.0±0.1	124.8±0.1	124.8±0.1
Cladding non-circularity			%	≤1.0	≤0.7	≤0.7
Coating diameter			um	242±7	242±7	242±7
Coating/chaffinch concentrically error			um	≤12.0	≤12.0	≤12.0
Coating non circularity			%	≤6.0	≤6.0	≤6.0
Core/cladding concentricity error			um	≤0.6	≤0.5	≤0.5
Curl(radius)			um	≥4	≥4	≥4

Other fibers please contact our sales representative.Storage Temp: -40°C ~+60°C

Application:

Used in aerial and duct access cabling
Can be installed in small bending environment
Suitable for the connection between indoor and outdoor
Specially used where good insulation performance are expected
