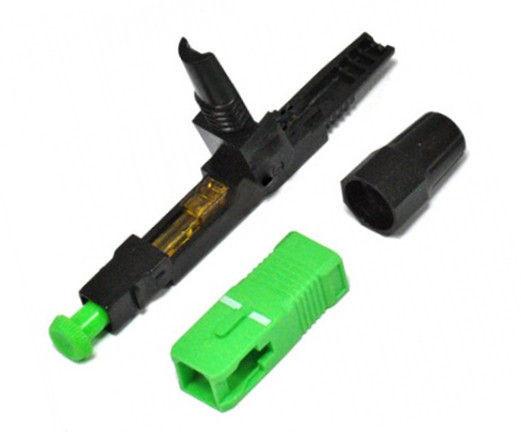

    UPC APC SC Fast Single Mode Fiber Connectors , Drop 3mm Optical Cable Connector

    Ask Lasest Price
    Brand Name : FURONG
    Model Number : Fiber Optic Connector
    Certification : ROHS SGS
    Price : Neogotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30000 PCS per day
    Delivery Time : 3-10 days
    • Product Details
    • Company Profile

    UPC APC SC Fast Single Mode Fiber Connectors , Drop 3mm Optical Cable Connector

    UPC APC SC Fast Single Mode Fiber Connectors , Drop 3mm Optical Cable Connector


    Description:


    SC quick assembly connector has easy assembly and excellent stability.


    Quick Detail:

    1. Name: SC Fast Connector
    2. Connector: FC, LC, SC
    3. Mode: Singlemode and Multimode
    4. Ferrule end-face: UPC, APC
    5. Ferrule size: 2.5mm
    6. Structure: Pre-polished, Un-polished

    Feature:

    • No special assembling tool
    • Easy for assembling with mechanical splice and no polishing
    • Minimize the defect rate by features of removal and reusable.
    • Easy for learning technology by a simple assembling method (within 1 and half minutes)

    Application:

    • Optical network maintaining and repair.
    • Local area network environment of connection.
    • Terminal connection-leg of FTTH optic network.
    • Optical fiber plug-and socket panel.
    • Fiber optic distribution frame.

    Specification:


    Articlevalue
    Insertion loss≤0.3 (max 0.4)
    Return loss≥60dB
    Connector typeSC/APC
    Cabledrop 3.0mm / flat 2x3mm cable
    Fiber clamping force≥3N
    Tensile StrengthTypical ≥40N (Max 50N)
    Online tensile strength 20NIL variation (≤0.2dB) RL variation (≤5dB)
    Working Temperature-40℃ ~ +75℃
    Can be repeatedly usedPossible

    Our advantage


    1. Professional manufacturer.
    2. We provide good quality Fiber Optic solution with manufacture competitive price
    3. Best delivery time
    4. OEM service provide,Your own logo and own design are welcomed.
    5. Long distance factory review by video talk
    6. Can be customized production of fiber optic solution
