ST SX Single Mode FTTH Fiber Optic Patch Cord , High Speed Optical Fiber Cables

    Buy cheap ST SX Single Mode FTTH Fiber Optic Patch Cord , High Speed Optical Fiber Cables from wholesalers

    Buy cheap ST SX Single Mode FTTH Fiber Optic Patch Cord , High Speed Optical Fiber Cables from wholesalers
    • Buy cheap ST SX Single Mode FTTH Fiber Optic Patch Cord , High Speed Optical Fiber Cables from wholesalers

    ST SX Single Mode FTTH Fiber Optic Patch Cord , High Speed Optical Fiber Cables

    Ask Lasest Price
    Brand Name : FURONG
    Model Number : FTTH Fiber Opitc Cable
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

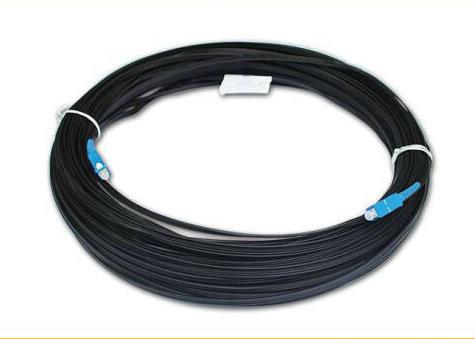

    ST SX Single Mode FTTH Fiber Optic Patch Cord , High Speed Optical Fiber Cables

    ST SX Single Mode FTTH Fiber Optic Patch Cord , High Speed Optical Fiber Cables


    Description


    A Fiber Optic Patch Cord is an optical cable used to connect one optical device to another for signal rounting.

    Diveces of different types are connected with patch cords. It is a length of fiber cable with connectors fixed on

    two ends to realize the optical path active connection. If both sides of the connector or its end-face are

    different, we call it hybrid patch cord. According to the connector structure type, it can be divided into SC, LC,

    FC, ST etc. According to the polishing ceramic end-face, it can be divided into PC, UPC and APC.


    Features


    1. Low insertion loss & high return loss
    2. Good repeatability & inter changeability

    3. PC, UPC, APC polishing

    4. Suitable for high-speed, high-capacity optical fiber tranmission system
    5. Provide singlemode/multimode pactch cord&pigtails

    6. Optical performance 100% factory test


    Formulate for customer


    1. Diameter: 0.9, 2.0, 3.0mm, etc

    2. Type: Single-Mode and Multi-Mode optical fiber

    3. The joint selection: FC, SC, LC, ST, MU, MTRJ, E-2000 etc

    4. Length: 1m, 1.5m, 2m, 3m, or other requested length


    Application


    1. CATV

    2. Active device termination

    3. Telecommunication networks

    4. Local area networks (LAN)

    5. Data processing networks

    6. Test equipment

    7. Premise installation

    8. Wide area networks (WAN)


    Technical Data


    NO.

    Item

    Unit

    Single Mode

    Multi-Mode

    1

    Insertion Loss

    dB

    ≤0.2

    ≤0.3

    ≤0.3

    2

    Return Loss

    dB

    ≥50/UPC

    ≥45/PC

    ≥65/APC

    ≥35/PC

    3

    Repeatability

    dB

    0.1

    4

    Working Times

    Times

    ≥1000

    5

    Operating Temperature

    °C

    -40-85

    6

    Optical Cable Diameter

    mm

    Φ0.9

    Φ2.0

    Φ3.0


    Item

    PC/UPC Polishing

    APC Polishing

    Ferrule Diameter(mm)

    2.5

    1.25

    2.5

    1.25

    Radius of Cury(mm)

    10 ~25

    7~25

    5~15

    Fiber Height(nm)

    -100~50

    ±50

    Apex Offset(um)

    ±50

    ±50


    Our advantage


    1. Professional manufacturer.
    2. We provide good quality Fiber Optic solution with manufacture competitive price
    3. Best delivery time
    4. OEM service provide,Your own logo and own design are welcomed.
    5. Long distance factory review by video talk
    6. Can be customized production of fiber optic solution

    SC fiber optic cable
