    Outdoor GYXTW Fiber Optic Patch Cord CATV / LAN / MAN Fiber Optic Cable

    Ask Lasest Price
    Brand Name : FURONG
    Model Number : GYXTW patch cord
    Certification : ROHS
    Price : Negotiation
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 30,000 per month
    Delivery Time : 3-10 working days after received your payment
    • Product Details
    • Company Profile

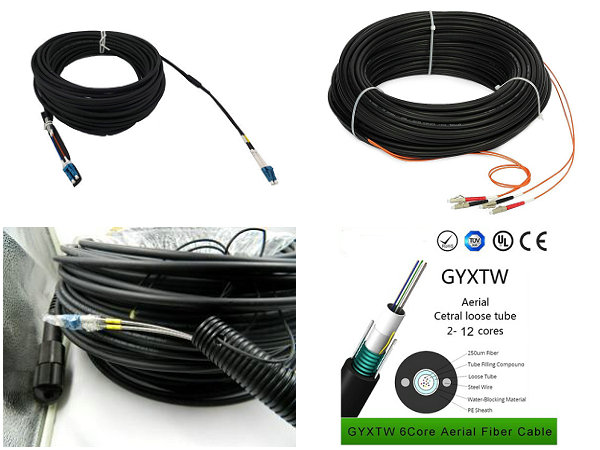

    Outdoor GYXTW Fiber Optic Patch Cord CATV / LAN / MAN Fiber Optic Cable

    Outdoor GYXTW Fiber Optic Patch Cord CATV / LAN / MAN Fiber Optic Cable


    Quick Details:

    1. Type: Outdoor Fiber Patch Cord
    2. Mode: Single mode and Multimode
    3. Cable Fan-out: 0.5M, 1M
    4. Ferrule End-face: PC, UPC, APC
    5. Cable core: 2core, 4core, 6core...customized
    6. Cable length: 1M, 2M, 3M….customized

    Description:


    Outdoor cable includes 2~144core bare fiber inside. The fan-out could be 0.9mm, 2.0mm and 3.0mm.

    And the fan-out cable length is 0.5M or 1M.


    Features:

    1. High tensile coefficient and stress coefficient
    2. Manufacture without damage to cable
    3. Cost cutting for maintenance
    4. Convenient for application, highly security
    5. Application without damage to cable
    6. Meets Telcordia End-face Geometry Requirements
    7. Custom Configurations Available at No Extra Charge

    Applications:

    1. Telecommunication networks
    2. CATV, LAN, MAN, WAN, Test &Measurement
    3. Optical access network
    4. Fiber optic communication networks

    Specification:


    Item

    Single mode

    Ferrule End-face

    PC

    UPC

    APC

    Insert attenuation

    ≤0.3dB

    ≤0.3dB

    ≤0.3dB

    Return loss

    ≥45dB

    ≥50dB

    ≥55dB

    repeatability

    ≤0.1dB

    ≤0.1dB

    ≤0.1dB

    Operation temperature

    -20°C~+70°C(PVC)/-40°C~+90°C(LSZH/PU)

    Outer diameter

    1.6mm


    Our advantage


    1. Professional cable manufacturer.
    2. We provide good quality Fiber Optic cable with manufacture competitive price
    3. Best delivery time
    4. OEM service provide,Your own logo and own design are welcomed.
    5. Long distance factory review by video talk
    6. Can be customized production of fiber optic cable
    7. 30 years cable service life , even 60 years cable service life.

    GYXTW Cable
