    FRP Strength Member G657A2 Two Core FTTH Fiber Optic Cable LSZH Jacket

    Ask Lasest Price
    Brand Name : FURONG
    Model Number : FTTH CABLE
    Certification : ISO, SGS, ROHS
    Price : NEGOTIABLE
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000KM/DAY
    • Product Details
    • Company Profile

    FRP Strength Member G657A2 Two Core FTTH Fiber Optic Cable LSZH Jacket

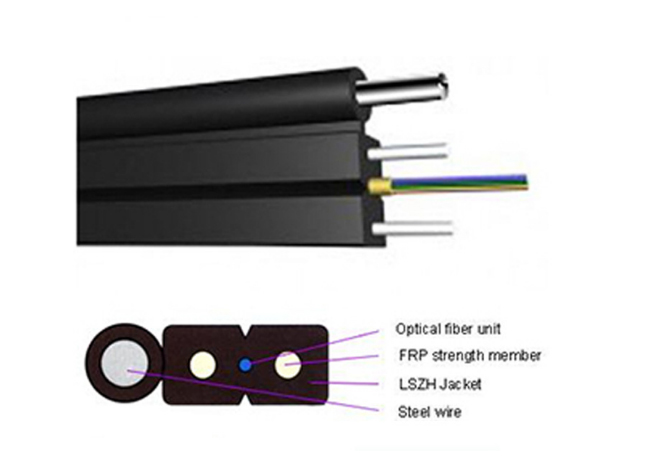

    Two Core Steel Messenger with FRP Strength Member G657A2 FTTH Fiber Optic Cable LSZH Jacket


    FTTH drop cables are good to use for fiber to the home last mile solution, we provide FTTH drop cable with different counts from 1, 2, 4, to 12. This cable adopts the popular design in the industry, its structure and performance is optimized for FTTH applications.


    Characteristic

    Self-supporting butterfly drop cable (GJYXFCH/GJYXFDCH) is made from the disc into the optical fiber cable outer in add a stout rope suspension wire.

    1.Thick wire

    2 Not metal or metal strengthening element

    3.Single Fiber core or optical fiber belt (G657, A2) (1-4 core)

    4.Low smoke zero halogen resistance sheath

    FiberG.652DG.657A50/125μm62.5/125μm

    Attenuation

    (+20)

    @850nm≤3.0 dB/km≤3.5 dB/km
    @1300nm≤1.5dB/km≤1.5dB/km
    @1310nm≤0.40 dB/km≤0.35 dB/km
    @1550nm≤0.3 dB/km≤0.25dB/km

    Bandwidth

    (Class A)

    @850nm≥500 MHz·km≥200 MHz·km
    @1300nm≥1000 MHz·km≥600 MHz·km
    Numerical Aperture0.200±0.015NA0.275±0.015NA
    Cable Cut-off Wave length≤1260nm≤1480nm
