    Pre Connectorized FTTH Fiber Optic Drop Cable Corning Indoor Outdoor Fiber Cable

    Ask Lasest Price
    Brand Name : FURONG
    Model Number : FTTH bow-type 1 core
    Certification : ROHS
    Price : negotiation
    Payment Terms : T/T or western Union, D/P
    Supply Ability : 10,000km per month
    Delivery Time : 7 working days after received your payment
    • Product Details
    • Company Profile

    Pre Connectorized FTTH Fiber Optic Drop Cable Corning Indoor Outdoor Fiber Cable

    Pre Connectorized FTTH Fiber Optic Drop Cable Corning Indoor Outdoor Fiber Cable


    1. Product Description


    This specification covers the general requirements and performance of cable for FTTH, which

    FOC offered including optical characteristics, mechanical characteristics and geometrical

    characteristics and etc.

    2. OPTICAL FIBER Specification


    Optical fiber characteristics (FPC G.657A FIBER)

    Category

    Description

    Specifications

    G.657A

    Optical Specifications

    Attenuation

    @1310nm

    ≤0.4dB/km

    @1550nm

    ≤0.3dB/km

    Attenuation discontinuity

    ≤0.05 dB

    Zero Dispersion Wavelength

    1300~1324nm

    Zero Dispersion Slope

    ≤0.090ps/(nm2.km)

    Dispersion

    @1288-1339nm

    ≤3.5 ps/nm.km

    @1271-1360nm

    ≤5.3 ps/nm.km

    @1550nm

    ≤18 ps/nm.km

    Cable Cutoff Wavelength(λcc)

    ≤1260nm

    Geometric

    Specifications

    Mode Field Diameter

    @1310nm

    (8.6~9.2)±0.4μm

    Cladding Diameter

    125±0.7μm

    Cladding Non-Circularity

    ≤1.0%

    Coating Diameter

    243±7μm

    Coating/Cladding Concentricity Error

    ≤8μm

    Core/Cladding Concentricity Error

    ≤0.6μm

    Mechanical

    Specifications

    Proof Test level

    ≥1.0%

    Fiber Curl Radius

    ≥4.0m

    Peak Coating Strip Force

    1.3~8.9N

    3. OPTICAL CABLE

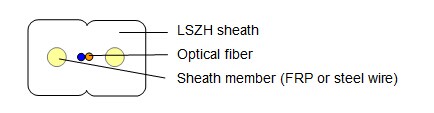

    3.1 Construction of cable

    indoor Bow-type GJXFH ftth cable / 2 core ftth drop cable / drop cable

    - Color Identification

    Fibers color: Blue, Orange,Green,Brown

    Sheath color: White or Black


    Fiber count

    1/2

    4

    Attenuation G.657 (dB/km)

    @1310/@1550nm

    0.4/0.3

    0.4/0.3

    Diameter (mm)

    2.0X3.0(±0.15)

    2.0X3.5(±0.15)

    Weight (kg/km)

    8.5

    11

    Tensile strength (N)

    Long term

    40

    40

    short term

    80

    80

    Crush resistance

    (N/100mm)

    Long term

    FRP:500 STEEL WIRE:1000

    500

    short term

    FRP:1000 STEEL WIRE:2200

    1000

    Bend radius (mm)

    Static

    10 (G.657A)

    Dynamic

    20 (G.657A)

    Operating temperature (°C)

    -20~+60

    Easily strip each unit and easily separate the fiber from the sheath.


    - Simple structure ,light weight and high practicability;

    - Novel flute design easily strip and splice, simplify the installation and maintenance;

    - Two parallel FRP strength members ensure good performance of crush and tension resistance

    to protect the fiber;

    - If G.657 fiber be put in the cable, ensure the very good bending performance. (Bend radius

    10mm/G.657A

    - Low smoke, zero halogen and flame retardant sheath;


    Our advantage
    1, Professional cable manufacturer.
    2, We provide good quality FTTH cable with manufacture competitive price
    3, Best delivery time
    4, OEM service provide,Your own logo and own design are welcomed.
    5 Long distance factory review by video talk
    6, Can be customized production of fiber optic cable
    7, 30 years cable service life , even 60 years cable service life.


    .
