    LSZH FTTX / FTTH Drop Cable , Single Mode Aerial Fiber Optic Cable

    Ask Lasest Price
    Brand Name : FURONG
    Model Number : GJYFXCH
    Certification : ISO9001
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 10,000KM per Month
    Delivery Time : 3-10 days
    • Product Details
    • Company Profile

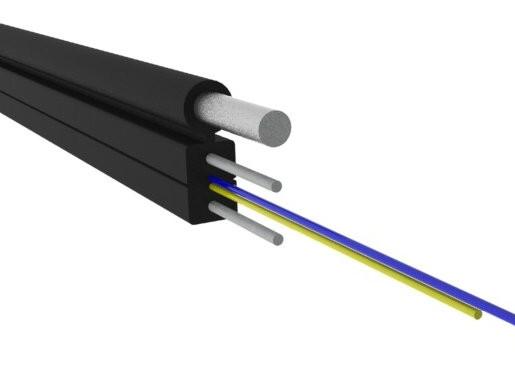

    LSZH FTTX / FTTH Drop Cable , Single Mode Aerial Fiber Optic Cable

    LSZH FTTX / FTTH Drop Cable , Single Mode Aerial Fiber Optic Cable


    FTTH & FTTX cables include indoor and outdoor applications. Fiber count from 1fiber to 8fibers as per requested, G652D and G657A fibers available, with LSZH jacket, FRP strength member & Steel strength member. part number: GJXH, GJXFH, GJYXCH, GJYXFCH, GYPHA, GYPFHA...


    Characteristics


    Special fiber provides high bandwidth and excellent communication transmission property

    Two parallel strength members ensuring good performance of crush resistance to protect the fiber

    Simple structure, light weight and high practicability

    Novel flute design, easily strip and splice, simplify the installation and maintenance

    Single steel wire as additional strength member ensuring good performance of tensile strength


    ·Fiber Parameters


    No

    Item

    Unit

    Specification

    G.657A1

    1

    Mode Filed Diameter

    1310nm

    μm

    9.0±0.4

    1550nm

    μm

    10.1±0.5

    2

    Cladding Diameter

    μm

    124.8±0.7

    3

    Cladding Non- Circularity

    %

    ≤0.7

    4

    Core-Cladding Concentricity Error

    μm

    ≤0.5

    5

    Coating Diameter

    μm

    245±5

    6

    Coating Non-Circularity

    %

    ≤6.0

    7

    Cladding -Cladding Concentricity Error

    μm

    ≤12.0

    8

    Water Cutoff Wavelength

    nm

    λcc ≤1260

    9

    Attenuation(max.)

    1310nm

    dB/km

    ≤0.4

    1550nm

    dB/km

    ≤0.3

    10

    Macro-Bending Loss

    1turn ×radius @1550nm

    dB

    ≤0.75

    1turn ×radius @1550nm

    dB

    ≤1.5


    ·Cable Parameters


    Items

    Specifications

    Fiber Count

    2

    Colored Coating Fiber

    Dimension

    250±15μm

    Color

    Blue, Orange

    Strength Member

    Dimension

    0.5mm

    Material

    FRP

    Self--Supporting Member

    Dimension

    1.0mm

    Material

    Steel

    jacket

    Dimension

    5.0±0.2mm×2.0±0.1mm

    Material

    LSZH

    Color

    Black


    ·Mechanical and Environmental Characteristics


    Items

    Unit

    Specifications

    Tension (Long Term)

    N

    300

    Tension (Short Term)

    N

    600

    Crush (Long Term)

    N/10cm

    500

    Crush (Short Term)

    N/10cm

    1000

    Min. Bend Radius (Dynamic)

    mm

    10D

    Min. Bend Radius (Static)

    mm

    20D

    Installation Temperature

    -10~+50

    Operating Temperature

    -20~+60

    Storage Temperature

    -20~+60


    Shiping

    1. from 1km to 4km or other required,1 drum with cartoon box, 18drums/package

    2. pakcing size:depend on cable size and packing length

    3. Item shipped in 3-15 working days after payment is received depends on the quantity of the order.


    Our advantage


    1. Professional cable manufacturer.
    2. We provide good quality Fiber Optic cable with manufacture competitive price
    3. Best delivery time
    4. OEM service provide,Your own logo and own design are welcomed.
    5. Long distance factory review by video talk
    6. Can be customized production of fiber optic cable
    7. 30 years cable service life , even 60 years cable service life.
