    SC UPC / APC Duplex 3mm Single Mode Fiber Patch Cord Optical Fiber Cable FTTA

    Ask Lasest Price
    Brand Name : FURONG
    Model Number : SC patch cord
    Certification : ROHS
    Price : Negotiation
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 30,000 per month
    Delivery Time : 3-10 working days after received your payment
    • Product Details
    • Company Profile

    SC UPC / APC Duplex 3mm Single Mode Fiber Patch Cord Optical Fiber Cable FTTA

    SC UPC / APC Duplex 3mm Single Mode Fiber Patch Cord Optical Fiber Cable FTTA


    Quick Details:

    1. Type: SC, UPC/APC fiber patch cord
    2. Mode: Single mode
    3. Fiber: G652D, G657A1,G657A2, G657A3
    4. Ferrule End-face: PC, UPC, APC
    5. Cable core: Duplex
    6. Cable diameter: 0.9mm, 2.0mm, 3.0mm

    Features:

    1. Serialized & Individual Test Records
    2. Meets RoHS and Bell core GR 326-core standards
    3. Custom Configurations Available at No Extra Charge
    4. 3D fiber interferometer is available
    5. Pluggable structure, easy to intensive-installation
    6. Low insertion loss and high return loss

    Applications:

    1. Optical access network
    2. Data processing networks
    3. Telecommunication networks
    4. Fiber optic communication networks
    5. CATV, LAN, WAN, Test &Measurement

    Specification:


    Parameter

    Single Mode

    Multi Mode

    Basic

    Fiber connector

    FC, SC, LC, ST, MU, MTRJ, MPO, E2000

    Ferrule End-face

    PC

    UPC

    APC

    UPC

    Insertion Loss

    ≤0.2dB

    ≤0.2dB

    ≤0.3dB

    ≤0.3bB

    Return Loss

    ≥50dB

    ≥55dB

    ≥60dB

    ≥35dB

    Ceramic Ferrule Specification

    125.5um concentricity

    deviations:<=1um

    127um concentricity

    deviations:<=3um

    Suitable Fiber

    9/125um

    50/125um,62.5/125um

    End-face Geometry

    Radius of Curvature

    7~25mm

    5~12mm

    N/A

    Fiber Protrusion

    ≤50nm

    ≤100nm

    N/A

    Fiber Under Cut

    ≤100nm

    ≤100nm

    N/A

    Apex offset

    ≤50um

    Mechanical

    Exchangeability

    ≤0.2dB

    Salt Spray

    ≤0.1dB

    Drop

    ≤0.2dB(1.5M, 5 drops)

    Vibration

    IL ≤0.2dB(550Hz, 1.5mm)

    Repeatability

    ≤ 0.1dB(1000 times)

    Durability

    > 1000 times

    Operating Temperature

    -40°C ~ +85°C


    Our advantage


    1. Professional cable manufacturer.
    2. We provide good quality Fiber Optic cable with manufacture competitive price
    3. Best delivery time
    4. OEM service provide,Your own logo and own design are welcomed.
    5. Long distance factory review by video talk
    6. Can be customized production of fiber optic cable
    7. 30 years cable service life , even 60 years cable service life.

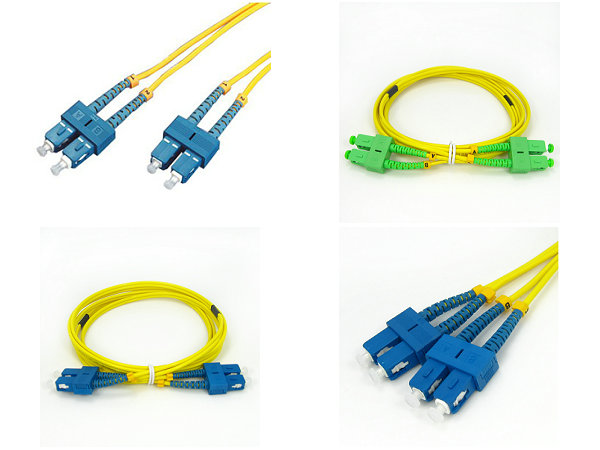

    SC Duplex
