Brand Name : | FURONG |
Model Number : | LCLCSM09DX003 |
Certification : | ROHS, SGS, ISO |
Price : | NEGOTIABLE |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 20000PCS |
Delivery Time : | DEPENDS ON QUANTITY |
Description:

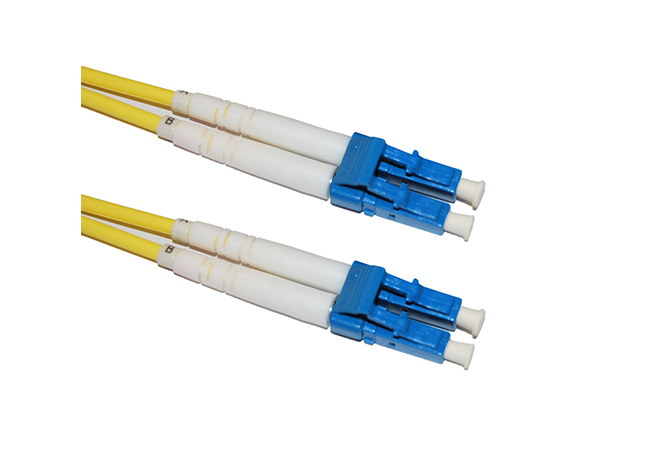

A Cost-effective solution that provides high bandwidth and transmission rates over longer distances. This high-quality singlemode fiber optic patch cable is specifically designed using SMF-28e fiber for ethernet applications. This cable is ROHS compliant. Each connection has a greater durability in resisting pulls, strains and impacts from cabling installs. Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 9/125 single mode fiber, immune to electrical interference.
Features:
1. Support long distance transmission with low loss.
2. 100% performance tested before shipping out.
3. 3D test is available
4. Cable color can be optional
5. Customized cable length
6. Excellent mechanical durability and stable performance
Applications :
1. Telecommunication networks;
2. CATV, LANs,Telecom,Video
3. Premise installations;
4. Gigbit applications ( ATM, Ethernet)
5. Video and military active device termination.
Optical Characteristics:
Fiber Type Various | SM | MM | |
Connector Type | FC, SC, ST, LC, MU | FC, SC, ST, LC, MU | |
Insertion Loss (Typical) | ≤0.3dB | ≤0.3dB | |
Return Loss (typical) | PC | ≥50dB | ≥35dB |
UPC | ≥55dB | ≥35dB | |
APC | ≥65dB | ||
Mating Durability | ≤0.2dB | ||
Storage Temperature | 40℃~+ 80℃ | ||
Durability | ≥1000 times | ||
Working Temperature | - 20℃~+ 80℃ |
![]() |
