Brand Name : | FURONG |
Model Number : | GJBFJV |
Certification : | ISO, SGS, ROHS |
Price : | NEGOTIABLE |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 2000KM/DAY |
Description

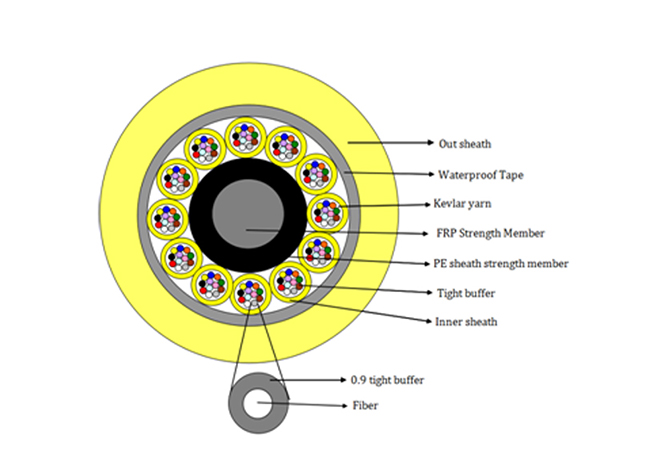

GJBFJV multi-purpose break-out cable use simplex cable as subunit. A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed wih a PVC or LSZH jacket
Features:
1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meet the requirements of relevant standards;.
3. The mechanical characteristics of jacket meet the requirements of relevant standards;
4. Soft, flexible, easy to lay and splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.
Application:
1.Indoor any purpose cabling;
2.Backbone distribution cable in building.
3.Installation: wall, interlayer, pipe, trough, duct
Fiber Cable Characteristics:
Cable code | Cable Size mm | Cable weight Kg/km | Tensilse Strength Long/Short term N | Crush Resistance Long/Short term N | Bedning Radius Dynamic/Static mm | Jacket Material |
GJBFJV-02 | 7.2±0.5 | 38 | 200/660 | 300/1000 | 20D/10D | PVC/LSZH |
GJBFJV-04 | 7.2±0.5 | 45.5 | 200/660 | 300/1000 | 20D/10D | PVC/LSZH |
GJBFJV-06 | 8.3±0.5 | 63 | 200/660 | 300/1000 | 20D/10D | PVC/LSZH |
GJBFJV-08 | 9.4±0.5 | 84 | 200/660 | 300/1000 | 20D/10D | PVC/LSZH |
GJBFJV-10 | 10.7±0.5 | 125 | 200/660 | 300/1000 | 20D/10D | PVC/LSZH |
GJBFJV-12 | 12.2±0.5 | 148 | 200/660 | 300/1000 | 20D/10D | PVC/LSZH |
GJBFJV-18 | 12.2±0.5 | 153 | 400/1320 | 300/1000 | 20D/10D | PVC/LSZH |
![]() |
