    PVC Jacket Spiral Stainless Steel Armored Indoor Fiber Optic Cable Flame Resistant

    Ask Lasest Price
    Brand Name : FURONG
    Model Number : GJSFJV
    Certification : ISO, SGS, ROHS
    Price : NEGOTIABLE
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000KM/DAY
    • Product Details
    • Company Profile

    PVC Jacket Spiral Stainless Steel Armored Indoor Fiber Optic Cable Flame Resistant

    Description

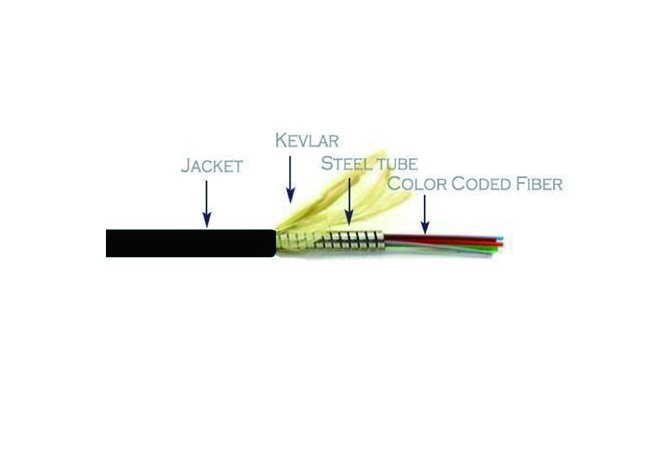

    The armored indoor cable is specifically for field wiring and complexity of environment. it is light weight, anti-tension, compression and strong; soft; easy to bend; abrasion, flame retardant, suit for widely range temperature.

    Features:

    1. Wiring compact all-dielectric structure, the inner sleeve is 0.9mm fiber, the cable has a high strength-weight ratio, allowing for quick wiring;

    2. High-strength fiber composite structure secondary coating offers the best performance and minimum temperature of the additional attenuation cables in harsh conditions to ensure the reliability and service life;

    3. A special high-strength, flexible type central reinforcing element, to ensure fiber strength and bending properties;

    4. Large area of aramid reinforced fiber optic cable to provide a high mechanical strength;

    5. Small tight pitch SZ stranded helical twisted fibers and aramid fibers single combined to ensure the field fiber optic cable has greater tensile strain capacity;

    6. Environmental friendly, Comply with RoHS.


    Applications:

    Military Communications;

    Coal, oil, natural gas, etc.

    Geological exploration Communications;

    Broadcast television;

    Emergency reopened optical fiber communication


    Technical Parameters:


    Out sheathTight bufferWeightMinimum allowable Tensile Strengthminimum allowable Crush LoadMinimum Bending RadiusStorage
    DiameterDiameter(N)(N/100mm)(MM)temperature
    (MM)(MM)(KG)short termlong termshort termlong termshort termlong term(℃)
    2.0×4.20.6311000300100050020D10D40
    2.4×5.00.6321000300100050020D10D40
    2.8×5.80.9351000300100050020D10D40
    3.0×6.20.9351000300100050020D10D40
