    48 Core LSZH Jacket Multipurpose Singlemode Yellow Jacket Fiber Optic Distribution Cable with 2.0mm / 3.0mm Branch

    Ask Lasest Price
    Brand Name : FURONG
    Model Number : GJBFJV
    Certification : ISO, SGS, ROHS
    Price : NEGOTIABLE
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000KM/DAY
    • Product Details
    • Company Profile

    48 Core LSZH Jacket Multipurpose Singlemode Yellow Jacket Fiber Optic Distribution Cable with 2.0mm / 3.0mm Branch


    48 Core LSZH Jacket Multipurpose Singlemode Yellow Jacket Fiber Optic Distribution Cable with 2.0mm / 3.0mm Branch


    Description

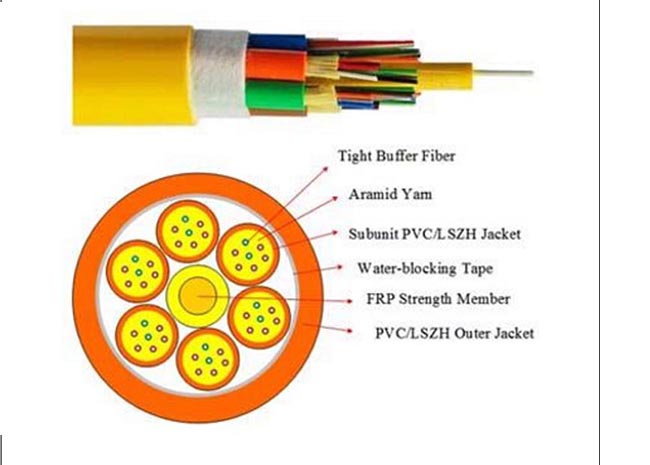

    GJPFJV cable is made by the tight buffer fiber wrapped with a layer of aramid yarn as strength member units,multi fibers as the sub unit twist with FRP into the circle ,and finally into fiber optic cable with PVC or LSZH sheath, with dry-type water-blocking materials between fiber and sheath.

    Features:
    --2.0mm or 3.0 tight buffered cable
    --Good mechanical and temperature performance
    --Soft,flexible,easy to splice,and with big capacity date transmission
    --PVC, LSZH, OFNP jacket for option for both inner or outer sheath

    --Easy to Strip, high tensile strength member


    Application:
    1. Suitable for communication equipment servrd
    2. Can be installed conveniently and perated simply
    3. Adopted to indoor distribution.
    4. As pigtail of communication equipment

    5. Terminated with connectors


    Fiber Cable Characteristics:

    G.652D50/125μm62.5/125μm
    Attenuation (+20℃)@850nm≤3.0 dB/km≤3.0 dB/km
    @1300nm≤1.0 dB/km≤1.0 dB/km
    @1310nm≤0.36 dB/km
    @1550nm≤0.22 dB/km
    Bandwidth (Class A)@850nm≥500 MHz·km≥200 MHz·km
    @1300nm≥1000 MHz·km≥600 MHz·km
    Numerical Aperture0.200±0.015NA0.275±0.015NA
    Cable Cut-off Wavelength λcc≤1260nm

    Mechanical Characteristics:

    Tensile StrengthLong Term80N6050
    Short Term150N120100
    Crush ResistanceLong Term100N/100mm100N/100mm100N/100mm
    Short Term500N/100mm500N/100mm500N/100mm
    Bending RadiusDynamic20XD20XD20XD
    Static10XD10XD10XD
