    Self-Supporting Outdoor Fiber Optic Cable with Central Loose Tube / Messenger Wire

    Ask Lasest Price
    Brand Name : FURONG
    Model Number : GYXTC8Y
    Certification : ROHS
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 2000KM per Day
    • Product Details
    • Company Profile

    Self-Supporting Outdoor Fiber Optic Cable with Central Loose Tube / Messenger Wire

    Self-Supporting Outdoor Fiber Optic Cable with Central Loose Tube / Messenger Wire


    Specifications:


    Temperature range

    -20℃~+70℃

    Nominal weight

    g/m

    78

    Out diameter

    mm

    10.5±0.3*17.8±0.3

    Min. Bending Radius(mm)

    Dynamic

    mm

    20H

    Static

    mm

    10H

    Max. Tension

    Short term

    N

    1200

    Long term

    N

    400

    Max. Crushing resistance(N/100m㎡)

    N/100m㎡

    1000


    Description:

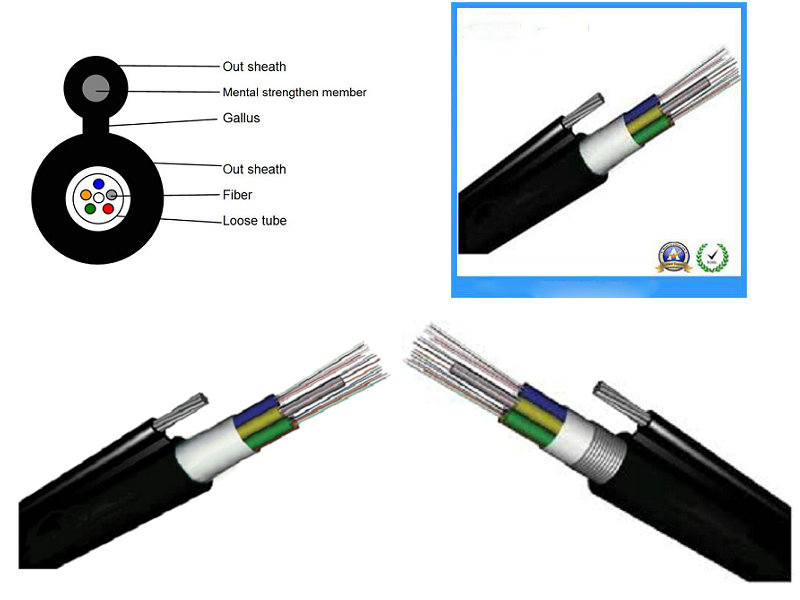

    Central loose tubes with jelly compound inside to protect the cladding fiber

    Corrugated steel tape laminated with plastic at both sides bonding to PE sheath

    The cross-section in fig8 shape

    Incorporates stranded steel messenger wire


    Properties:


    Messenger wire as self-supporting part, high tensile strength, easy for erection


    Applications


    Outdoor communication, Long distance and local area network(LAN) communication


    Laying method

    Self-support aerial installation


    Our advantage


    1. Professional cable manufacturer.
    2. We provide good quality Fiber Optic cable with manufacture competitive price
    3. Best delivery time
    4. OEM service provide,Your own logo and own design are welcomed.
    5. Long distance factory review by video talk
    6. Can be customized production of fiber optic cable
    7. 30 years cable service life , even 60 years cable service life.


    GYXTC8Y
