    ST Female to ST Male 1310/1550nm Singlemode Fiber Optic Attenuator - UPC Polish

    Ask Lasest Price
    Brand Name : FURONG
    Model Number : ATT-ST-XDB
    Certification : ROHS
    Price : NEGOTIABLE
    Supply Ability : 10000000
    Delivery Time : 1-8DAYS
    • Product Details
    • Company Profile

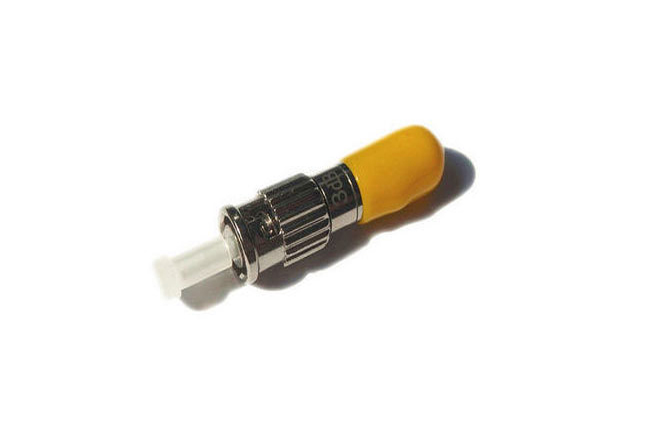

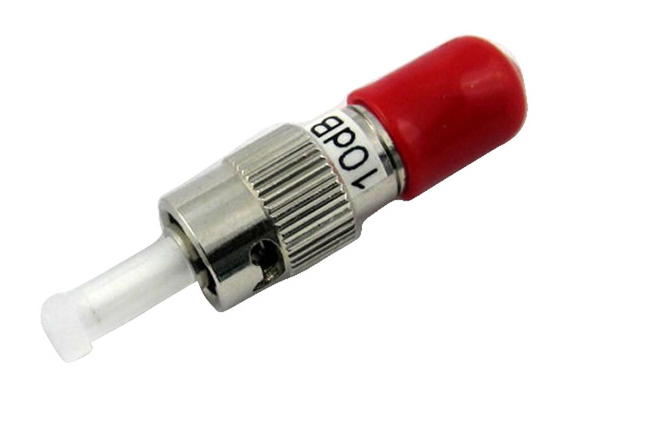

    ST Female to ST Male 1310/1550nm Singlemode Fiber Optic Attenuator - UPC Polish

    We supply both UPC ST fiber optic attenuator and APC ST fiber optic attenuator for single mode applications; they are with 1240nm to 1620nm compatible working wavelength, including the 1310nm and 1550nm typical single mode wavelength. These ST fiber attenuators are equipped with ceramic sleeves .


    PARAMETERS


    Attenuation Value 1dB ~ 30dB
    Operating Wavelength 1240 ~ 1620nm (Dual 1310/1550nm)
    Premium
    Return LossUPC >55dB
    APC >65dB

    Attenuation

    Accuracy

    1 ~ 7 dB ±0.5dB
    8 ~ 12 dB ±0.7dB
    13 ~ 17 dB ±1.0dB
    18 ~ 25 dB ±1.3dB
    Maximum Optical Input Power 1000mW
    Polarization Dependent Loss ≤0.1dB
    Operating Temperature Range -40 to 75
    Storage Temperature Range -40 to 85
    Humidity 95%RH

    Quality ST Female to ST Male 1310/1550nm Singlemode Fiber Optic Attenuator - UPC Polish for sale
