FC SM / MM Bare Optical Cable Adapter Low Insertion Loss Good Repeatability

    Buy cheap FC SM / MM Bare Optical Cable Adapter Low Insertion Loss Good Repeatability from wholesalers

    Buy cheap FC SM / MM Bare Optical Cable Adapter Low Insertion Loss Good Repeatability from wholesalers
    • Buy cheap FC SM / MM Bare Optical Cable Adapter Low Insertion Loss Good Repeatability from wholesalers
    • Buy cheap FC SM / MM Bare Optical Cable Adapter Low Insertion Loss Good Repeatability from wholesalers

    FC SM / MM Bare Optical Cable Adapter Low Insertion Loss Good Repeatability

    Ask Lasest Price
    Brand Name : FURONG
    Model Number : BAREFCSQ
    Certification : ROHS, ISO
    Price : Negotiable
    • Product Details
    • Company Profile

    FC SM / MM Bare Optical Cable Adapter Low Insertion Loss Good Repeatability

    Description:

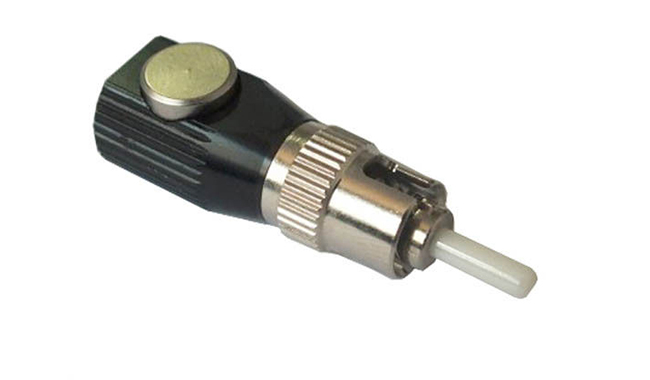

    The Bare Fiber Adaptor enables quick and easy temporary connections of singlemode fibers. This adaptor is very useful for connecting fibers to power meters. Optical timedomain reflectometers (OTDRs) and a variety of other instruments, enabling insitute functional testing without having to attach a permanent connector. The bare fiber is secured in place with a special precision cut foam pad to ensure kink and diffusion free operation, and repeatable measurements. Fibers with buffer sizes of up to 900 µm can be accommodated. Piano wires for cleaning blocked ferrules are included with all adapters.

    We supply FC bare fiber adaptor with stable qualities that use high quality Ceramic Ferrules and precise Fiber connector housing parts in round shape and square type.


    Features:

    --Low insertion loss

    --Good repeatability

    --Easy to use

    --Length: 40MM, Diameter: 13MM

    --Temperature cycle test:-40-+80 °C

    --Interchangeability < 0.2dB

    --Convenient operation, can be observed by the naked eye

    --Reusable, single mode / multi-mode fiber can be used

    --Low insertion loss, good reflecting inhibition


    Application:

    --Bare fiber connector device production

    --Visible fault location

    --Testing fiber on the reel

    --Optical fiber through connection test

    --Two-way communication during optical-fiber cable installation and maintenance

    --First-aid repair,temporary connection and testing on optical fiber project


    Specification:

    ShapeSquare / Round
    ConnectorFC/PC
    Applicable fiberSM & MM
    Ferrule diameter123-127 um
    Ferrule outder diameter2.499mm 1.249mm
    Cable diameter250um & 900um
    Insertion Loss≤0.20dB
    Repeat ability<0.2dB
    Tensile strength100g
    Plug time>1000 times
    Operating Temperature-40 ~+85℃
    SizeLength:40mm, diameter:30mm
