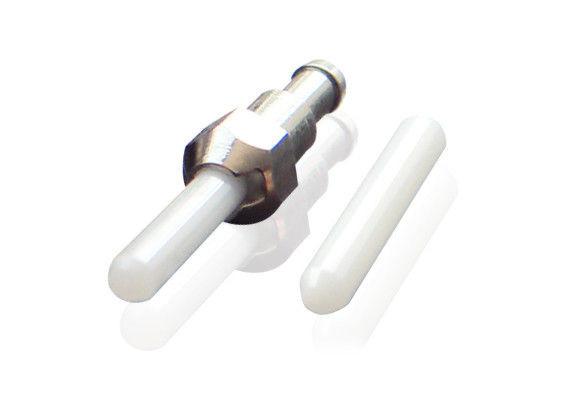

    UPC Fiber Optic Ferrule For Data Network Communication , Standard / Angle / Step

    Ask Lasest Price
    Brand Name : FURONG
    Model Number : Fiber Optic Ferrule
    Certification : ROHS SGS
    Price : Neogotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30000 PCS per day
    Delivery Time : 3-10 days
    • Product Details
    • Company Profile

    UPC Fiber Optic Ferrule For Data Network Communication , Standard / Angle / Step

    UPC Fiber Optic Ferrule For Data Network Communication , Standard / Angle / Step


    Quick Detail:

    1. Name: Optic Fiber Ferrule
    2. Mode: SM MM
    3. Ferrule End-face: UPC
    4. Type: Standard, Angle, Step
    5. Material: Ceramic/Zirconia, Metal
    6. Outer Diameter : φ2.5mm(FC/SC/ST), φ1.25mm(LC/MU)

    Description:


    Fiber optic ferrule keeps the fibers accurately aligned within the connector.


    Features:

    1. Good exchangeability
    2. Excellent directivity
    3. High Stability
    4. Favorable Commonality
    5. High precision configuration
    6. material origin: Japan

    Application:

    1. Telecommunication
    2. CATV LAN & WAN
    3. Data network communication

    4. Military data network communication


    Specification:


    ApplicationsPC/UPCAPC
    SM FiberMM FiberSM Fiber
    Outer DiameterØ2.499±0.0005

    Ø2.499±0.0001

    -0.0023

    Ø2.499±0.0005
    Concentricity≤ 1.0≤ 3.0≤ 1.0
    Hole DiameterØ125.0,
    Ø125.5,Ø126.0, +0.001
    Ø126.0,
    Ø127.0+0.001
    Ø125.0,Ø125.5,Ø126.0, +0.001
    MaterialAll Zirconia

    Our advantage



    1. Professional manufacturer.
    2. We provide good quality Fiber Optic solution with manufacture competitive price
    3. Best delivery time
    4. OEM service provide,Your own logo and own design are welcomed.
    5. Long distance factory review by video talk
    6. Can be customized production of fiber optic solution
